Features
- Two-Wire Conductivity and Concentration Transmitter
- Supply voltage 12~24 VDC, loop power
- 240*128 dots graphic LCD display, easy to read display
- Anolog output 4~20 mA current output
- NEMA 4X / IP54 enclosure protection
- Aluminum alloy robust enclosure
- Enclosure dimension 144*144*177mm (H*W*D)
- LVD & EMC CE certificated
- Configurable concentration range:
0~15% Sodium Hydroxide (NaOH)
0~20% Sodium Chloride (NaCl)
0~18% Hydrochloric Acid (HCl)
0~20% Sulfuric Acid (H₂SO₄)
User-defined concentration - TS Mark with identification No. TD13003W
- Configurable conductivity range:
0~200 μS/cm, 0~2,000,000 μS/cm
- Two-Wire Conductivity and Concentration Transmitter
- Supply voltage 12~24 VDC, loop power
- 240*128 dots graphic LCD display, easy to read display
- Anolog output 4~20 mA current output
- NEMA 4X / IP54 enclosure protection
- Aluminum alloy robust enclosure
- Enclosure dimension 144*144*177mm (H*W*D)
- LVD & EMC CE certificated
- Configurable concentration range:
0~15% Sodium Hydroxide (NaOH)
0~20% Sodium Chloride (NaCl)
0~18% Hydrochloric Acid (HCl)
0~20% Sulfuric Acid (H₂SO₄)
User-defined concentration - TS Mark with identification No. TD13003W
- Configurable conductivity range:
0~200 μS/cm, 0~2,000,000 μS/cm
Specifications

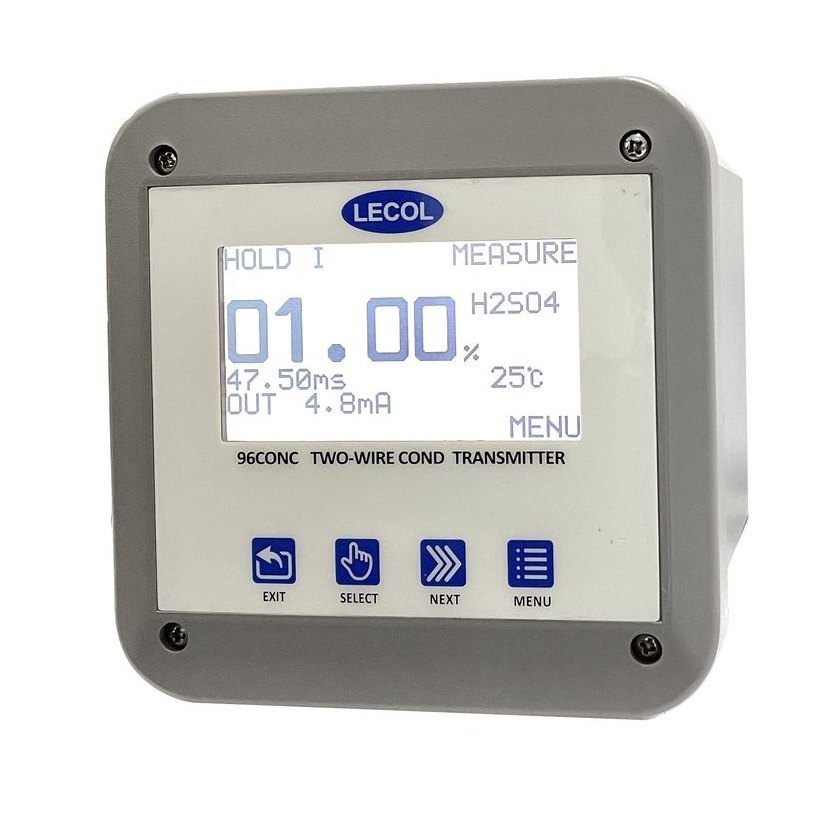

| 96CONC Conductivity and Concentration Transmitter | |
| Type | Two-Wire Transmitter |
| Display | 240*128 dots graphic LCD display |
| Supply voltage |
12~24 VDC, loop power
|
| Input range |
0~2,000,000 μS/cm 0~15%
NaOH |
| Temperature sensor types |
3kΩ Balco,
PT100 , PT1000
|
| Analog output |
4~20mA current output |
| Enclosure | NEMA 4X and IP54 Aluminum alloy with polyester powder coating |
| Mounting | Panel, wall, pipe, and pipe mounting with weather shield |

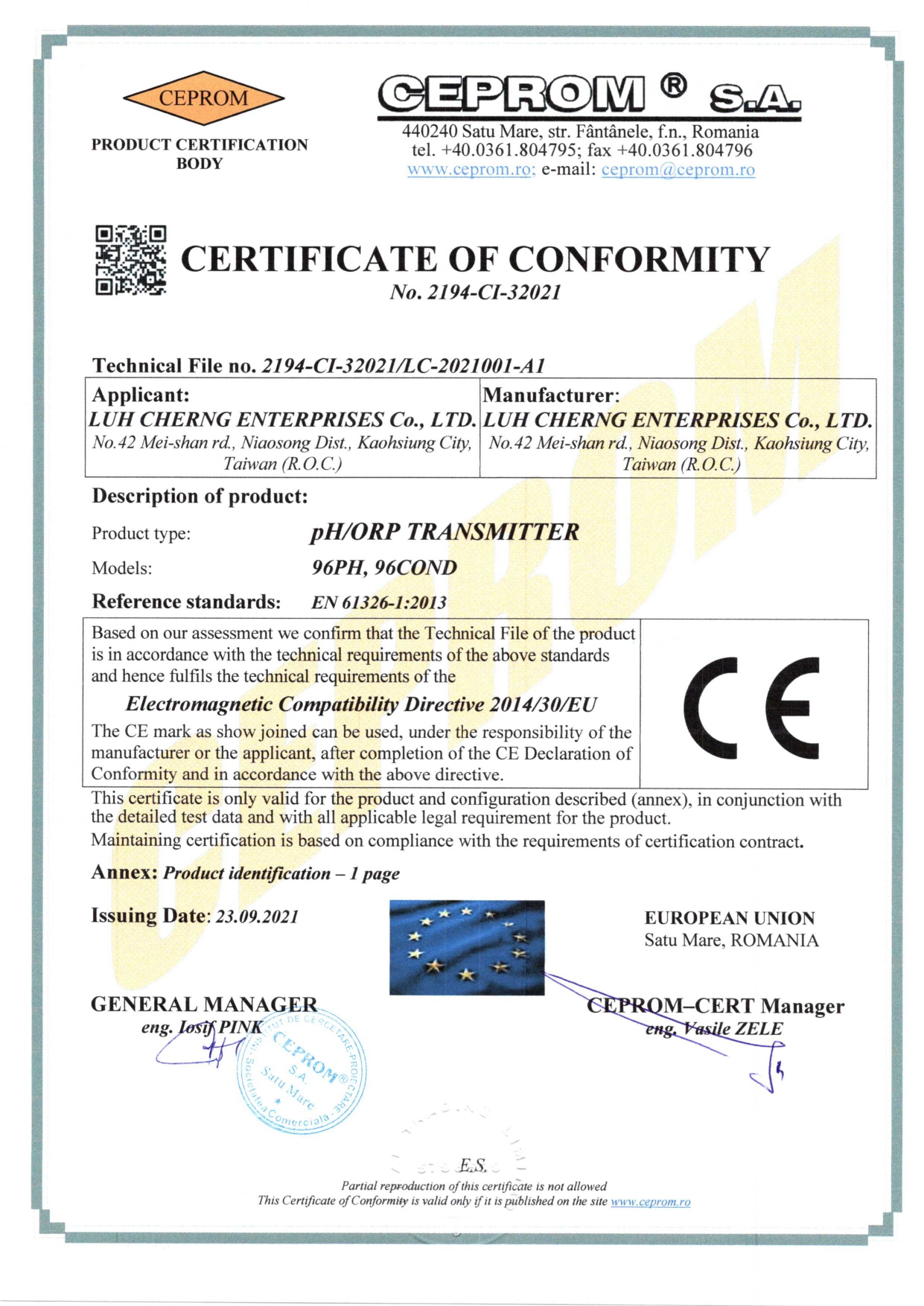

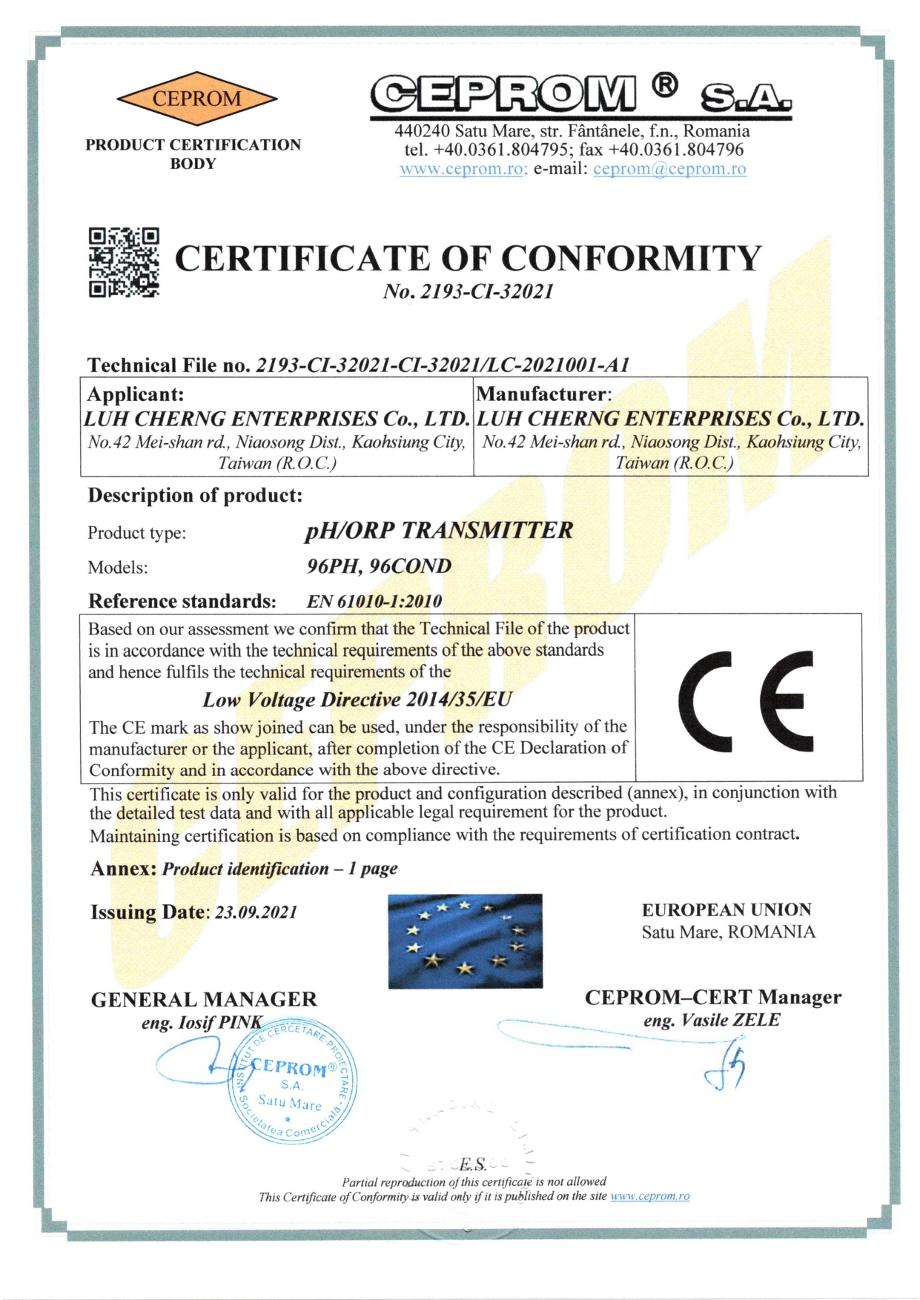

| Certification | Low Voltage Directive 2014/35/EU EN 61010-1:2010 Electromagnetic Compatibility Directive 2014/30/EU EN 61326-1:2013 CE marked TS Mark with identification No. TD13003W |
