Features
- Two-Wire Conductivity Transmitter
- Supply voltage 12~24 VDC, loop power
- 240*128 dots graphic LCD display, easy to read display
- Anolog output 4~20 mA current output
- NEMA 4X / IP54 enclosure protection
- Aluminum alloy robust enclosure
- Enclosure dimension 144*144*177mm (H*W*D)
- LVD & EMC CE certificated
- Configurable conductivity range: 0~200 μS/cm, 0~2000 μS/cm, 0~20000 μS/cm
- TS Mark with identification No. TD13003W
- Two-Wire Conductivity Transmitter
- Supply voltage 12~24 VDC, loop power
- 240*128 dots graphic LCD display, easy to read display
- Anolog output 4~20 mA current output
- NEMA 4X / IP54 enclosure protection
- Aluminum alloy robust enclosure
- Enclosure dimension 144*144*177mm (H*W*D)
- LVD & EMC CE certificated
- Configurable conductivity range: 0~200 μS/cm, 0~2000 μS/cm, 0~20000 μS/cm
- TS Mark with identification No. TD13003W
Specifications

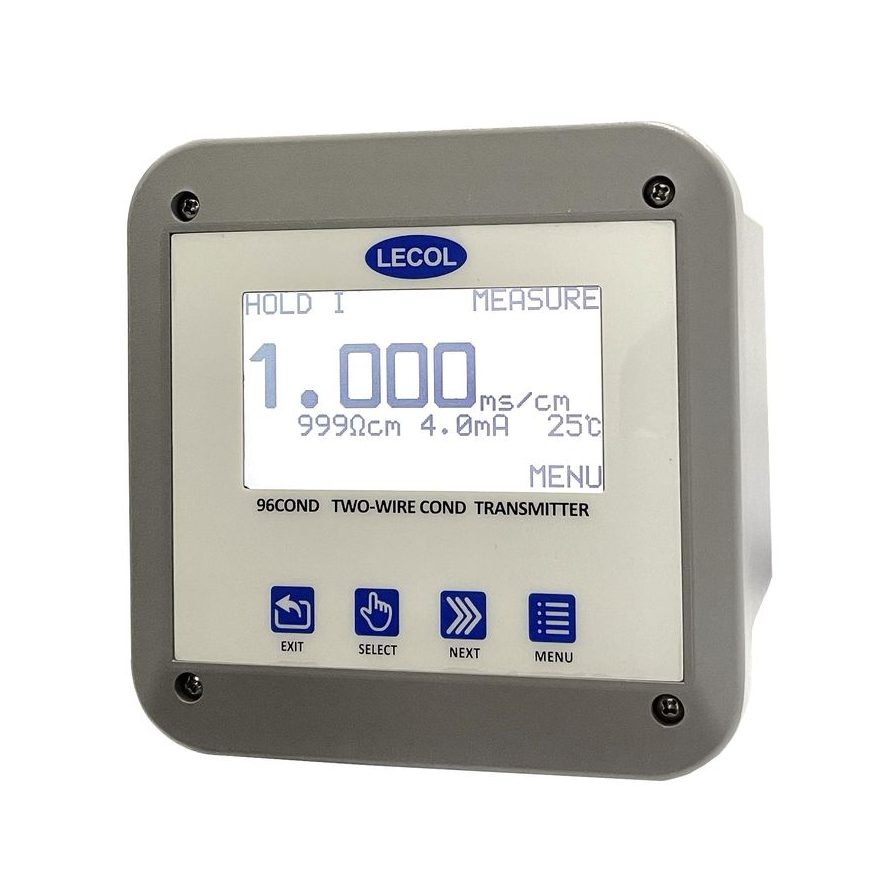

| 96COND Conductivity Transmitter | |
| Type |
Two-Wire Transmitter
|
| Display |
240*128 dots graphic LCD display
|
| Supply voltage |
12~24 VDC, loop power
|
| Input range | 0.01 cell: 0~
200 μS/cm 0.1 cell: 0~ 2000 μS/cm 1.0 cell: 0~ 20000 μS/cm |
|
Temperature sensor types |
3kΩ Balco, PT100, PT1000 |
| Analog output | 4~20mA current output |
| Enclosure |
NEMA 4X and IP54 Aluminum alloy with polyester powder coating |
| Mounting |
Panel, wall, pipe, and pipe mounting with weather shield |
| Dimensions | 144*144*177mm (H*W*D) |

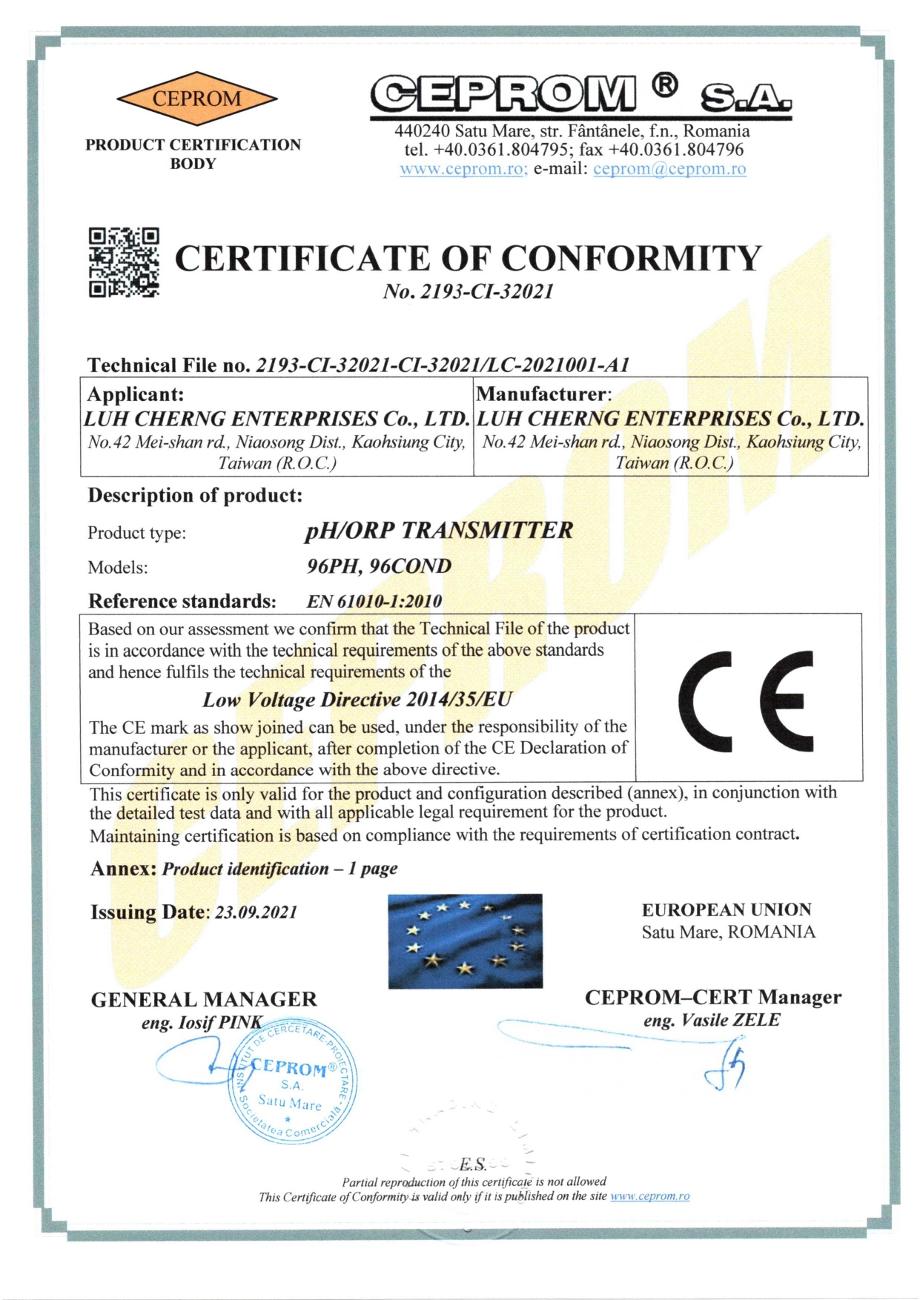

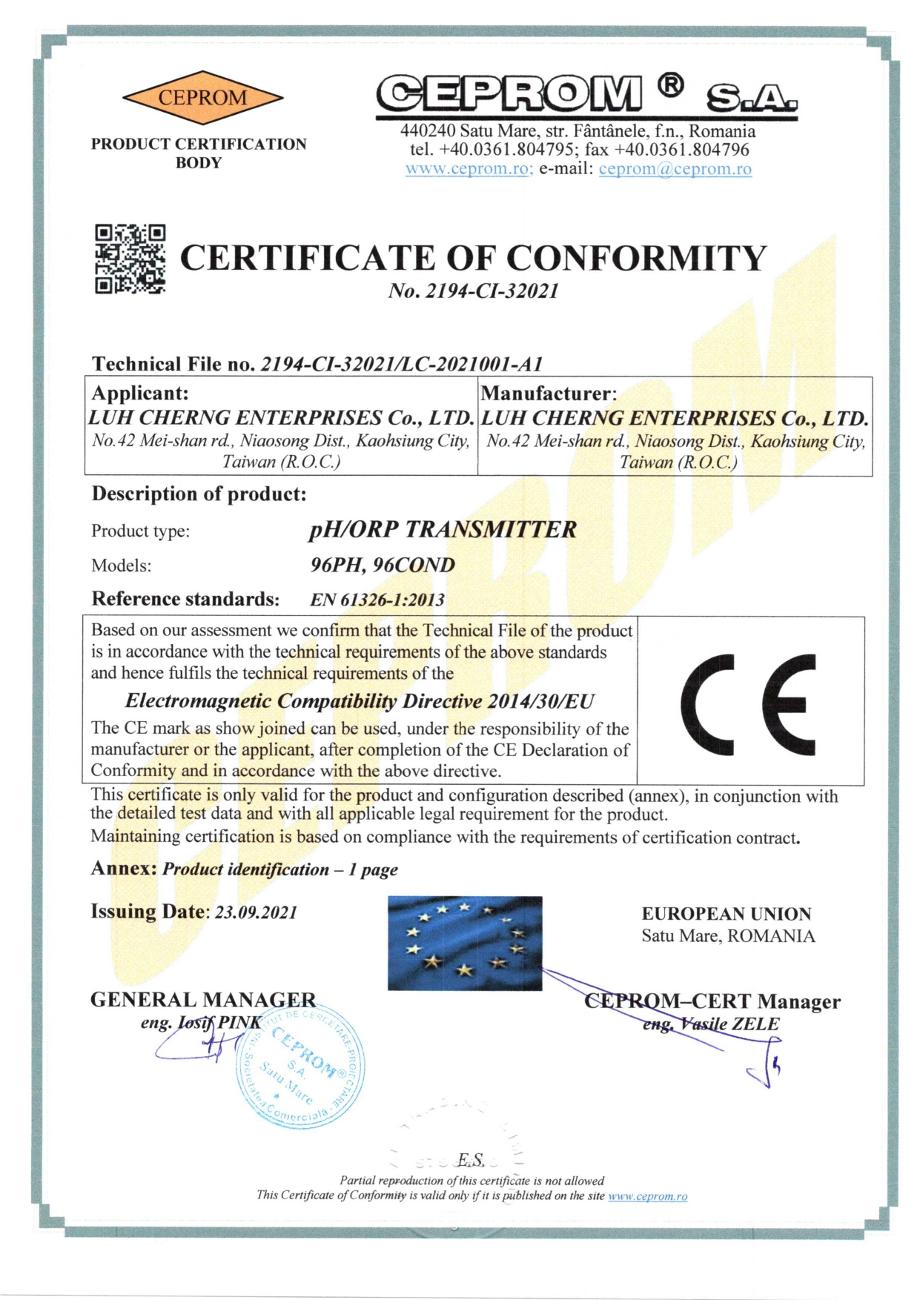

| Certification |
Low Voltage Directive 2014/35/EU EN 61010-1:2010 Electromagnetic Compatibility Directive 2014/30/EU EN 61326-1:2013 CE marked |
Download
Certification
