Features
- Two-Wire pH/ORP Transmitter
- Supply voltage 12~24 VDC, loop power
- 240*128 dots graphic LCD display, easy to read display
- Anolog output 4~20 mA current output
- NEMA 4X / IP54 enclosure protection
- Aluminum alloy robust enclosure
- Enclosure dimension 144*144*177mm (H*W*D)
- LVD & EMC CE certificated
- Configurable pH/ORP range:
0.00 ~ 14.00 pH , -1999 ~ 1999 mV
0.00 ~ 14.00 pH , -1999 ~ 1999 mV
Specifications

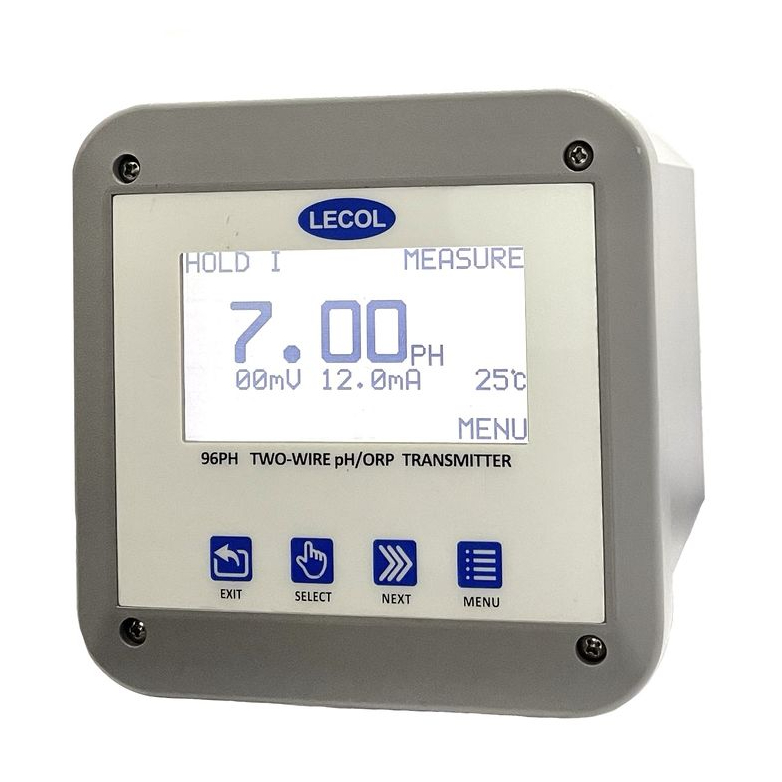

| 96PH pH/ORP Transmitter | |
| Type | Two-Wire Transmitter |
| Display | 240*128 dots graphic LCD display |
| Supply Voltage |
12~24 VDC, loop power
|
|
Input range |
pH : 0~14 pH ORP : +/- 1999 mV Temperature : 0 ~ 100℃ |
| Temperature sensor types |
3kΩ Balco, PT100 |
|
Analog output |
4~20mA current output
|
| Enclosure | NEMA 4X and IP54 Aluminum alloy with polyester powder coating |
| Mounting |
Panel, wall, pipe, and pipe mounting with weather shield |
| Dimensions | 144*144*177mm (H*W*D) |

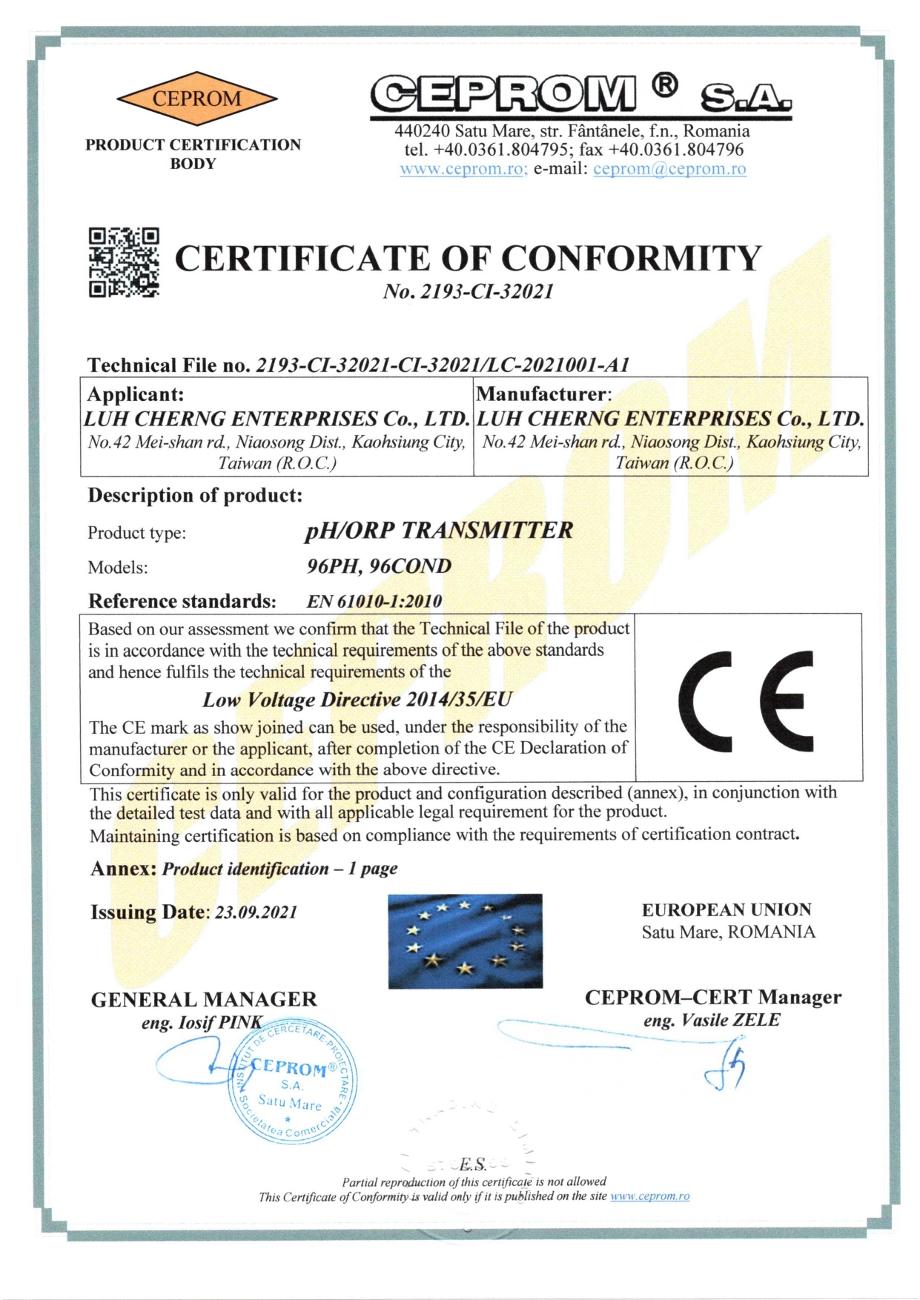

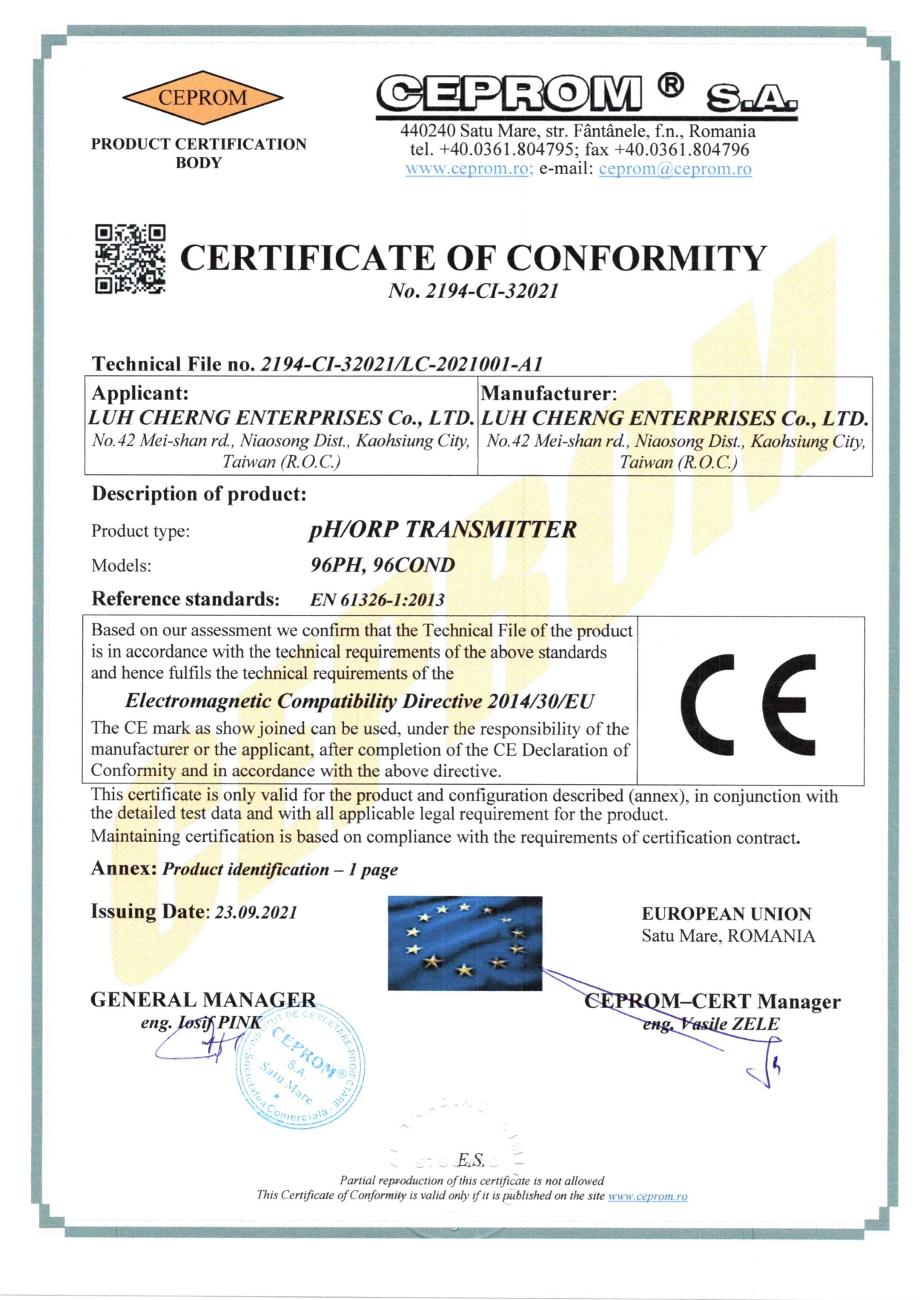

| Certification |
Low Voltage Directive 2014/35/EU EN 61010-1:2010 Electromagnetic Compatibility Directive 2014/30/EU EN 61326-1:2013 CE marked TS Mark with identification No. TD13003W |
Download
Certification
