Features
- Four-Wire pH/ORP Transmitter
- Supply voltage 100~240 VAC, 50/60 Hz
- 240*128 dots graphic LCD display
- 2 analog and 3 relay outputs
- NEMA 4X / IP65 enclosure protection
- Aluminum alloy robust enclosure
- Enclosure dimension 144*144*177mm(H*W*D)
- Configurable range: 0.00 ~14.00 pH, -1999 ~ 1999 mV
- Auto-cleaning function
- Four-Wire pH/ORP Transmitter
- Supply voltage 100~240 VAC, 50/60 Hz
- 240*128 dots graphic LCD display
- 2 analog and 3 relay outputs
- NEMA 4X / IP65 enclosure protection
- Aluminum alloy robust enclosure
- Enclosure dimension 144*144*177mm(H*W*D)
- Configurable range: 0.00 ~14.00 pH, -1999 ~ 1999 mV
- Auto-cleaning function
Specifications

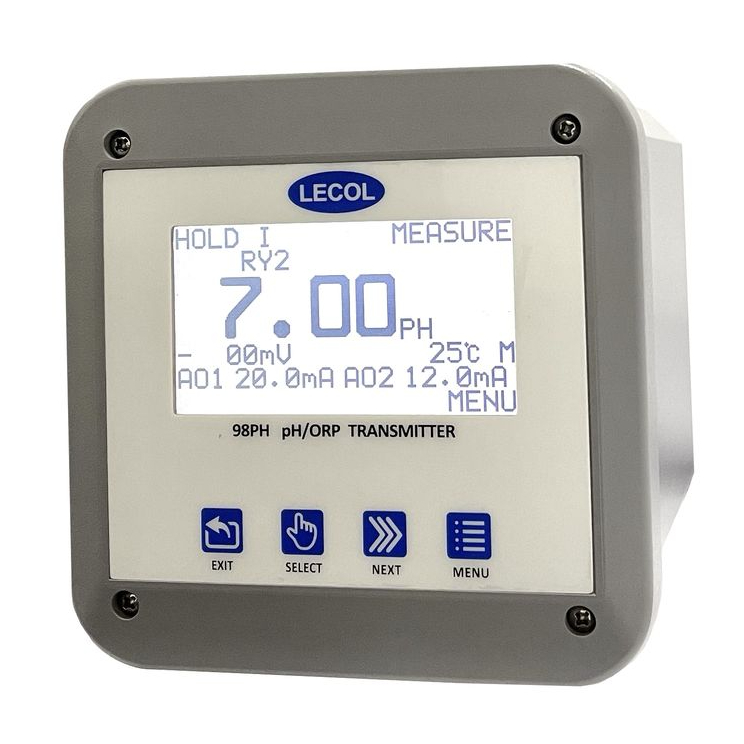

| 98PH pH/ORP Transmitter | |
| Type | Four-Wire Transmitter |
| Display | 240*128 dots graphic LCD display |
| Supply voltage |
100~240 VAC, 50/60 Hz |
| Input range |
pH : 0~14 pH ORP : +/- 1999 mV Temperature : 0~100 °C |
| Temperature sensor types |
3kΩ Balco, PT100 |
| Analog output |
Two 4-20mA current outputs (user programmable) |
| Relay output | 3 relay contacts SPDT, N.O. and N.C. (user programmable) |
| Enclosure |
NEMA 4X and IP65 Aluminum alloy with polyester powder coating |
| Mounting |
Panel, wall, pipe, and pipe mounting with weather shield |
| Dimensions | 144*144*177mm (H*W*D) |
