Features
- LECOL combination pH electrode series
- Patented non-flowing reference -retain KCl solution for longer time
- Perfect for purity water measurement.
Unique designed non-flowing refernece prevent ionic contamination of sesnor.
- Porous Teflon liquid junction maintain stable reference.
- Robust ABS body sutiable for general purpose
- Integral PT100 / PT1000 temperature compensator to enhanced pH accuracy.
- Process connection 3/4" NPT & 1" NPT thread can install in-line directly
- LECOL standard flow chamber available.
Unique designed non-flowing refernece prevent ionic contamination of sesnor.
Specifications

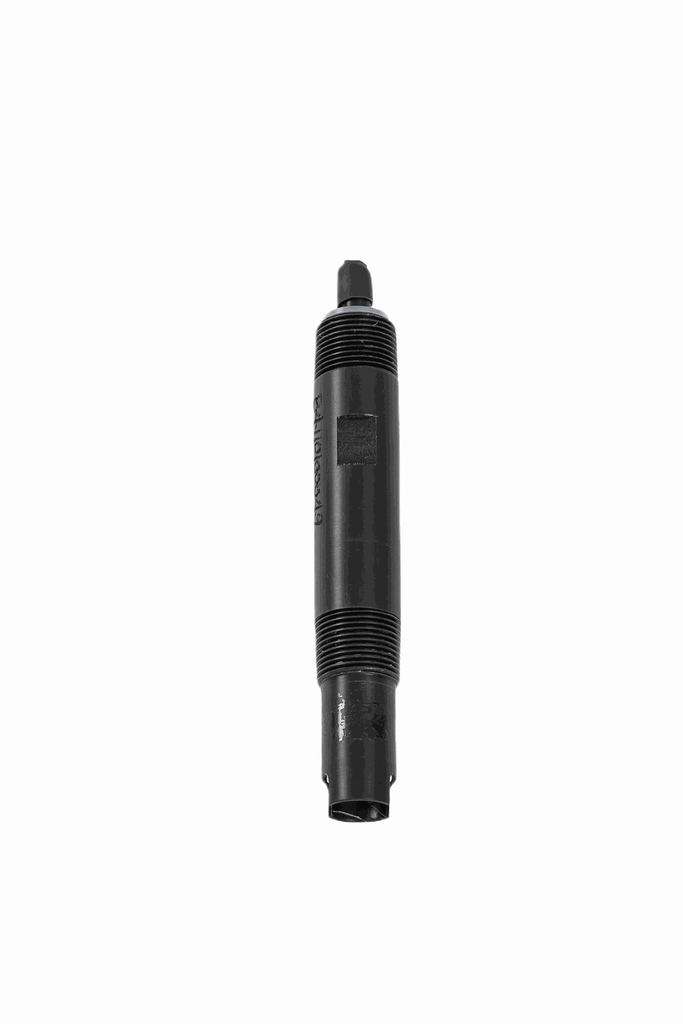

| B64 pure water pH sensor | |
| Measuring range |
0 ~ 14 pH |
| Body material |
ABS |
| Liquid junction |
Wood notched / Teflon notched |
| Temperature compensator |
PT100/ PT1000 |
| Operating rating |
6 kg/cm² at 80
°C
|
| Process connection |
3/4" NPT、1" NPT |
