Features
- LECOL combination pH electrode series
- Solid state reference electrode - longer life time
- Porous Teflon liquid junction maintain stable reference
- Robust PVDF body sutiable for general purpose and heavy duty application
- Integral temperature compensator
PT100 / PT1000 - Process connection 3/4"NPT thread
- Vairety of glass electrode for different applications
- LECOL standard flow chamber available
- LECOL combination pH electrode series
- Solid state reference electrode - longer life time
- Porous Teflon liquid junction maintain stable reference
- Robust PVDF body sutiable for general purpose and heavy duty application
- Integral temperature compensator
PT100 / PT1000 - Process connection 3/4"NPT thread
- Vairety of glass electrode for different applications
- LECOL standard flow chamber available
Specifications

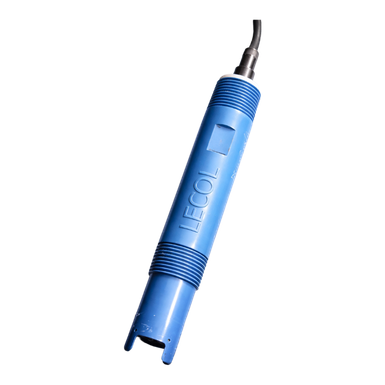

| B65 pH/ORP sensor |
|
| Measuring range |
PH: 0 ~ 14 pH ORP: - 2000 ~ 2000 mV |
| Body material |
PVDF |
| Liquid junction | Wood notched/ Teflon notched |
| Temperature compensator | PT100/ PT1000 |
| Operating rating | 10 kg/cm² at 70 °C 2.8 kg/cm² at 130 °C |
| Process connection |
3/4"NPT
|
