Features
- 2-electrode Conductivity Sensor
- Available cell constants of 0.01/ 0.1
Low conductivity
- Conductivity measuring range
cell = 0.01 0~2 to 0~200 μS/cm

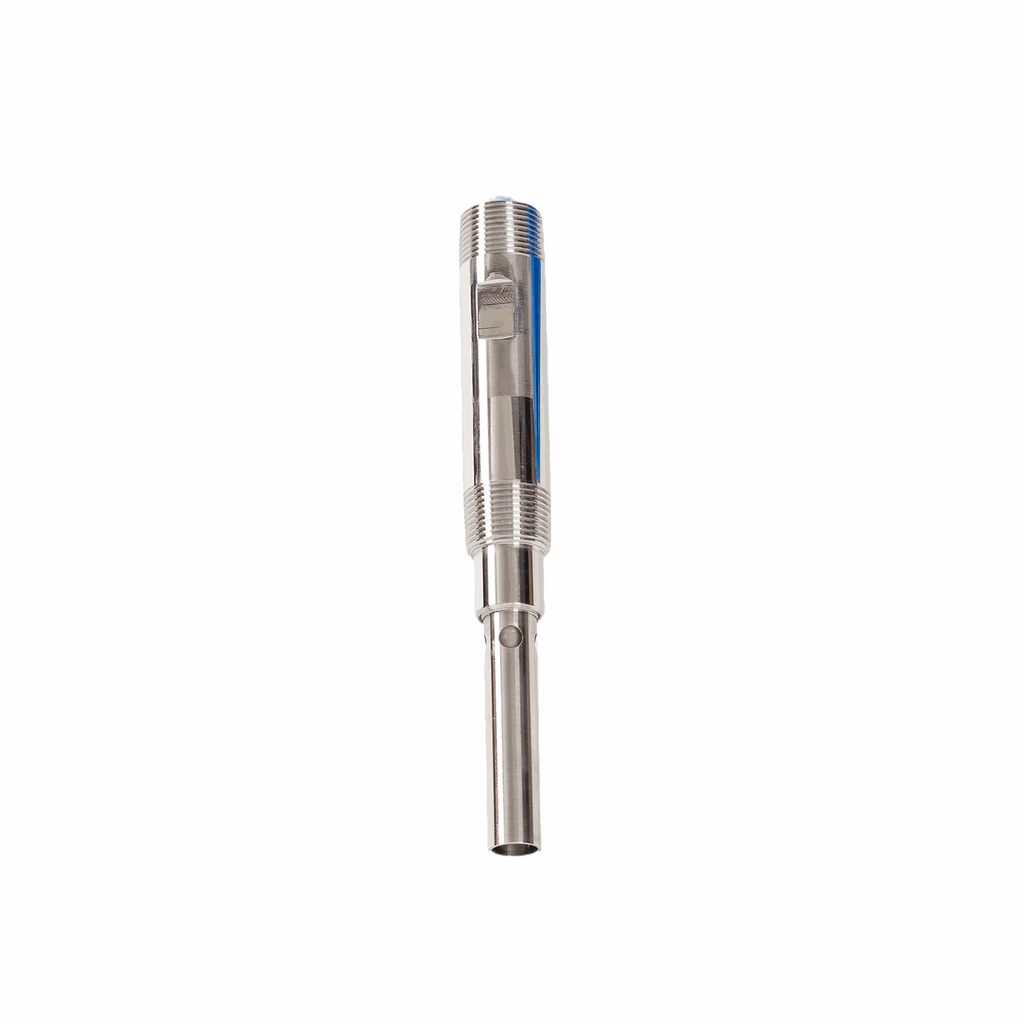

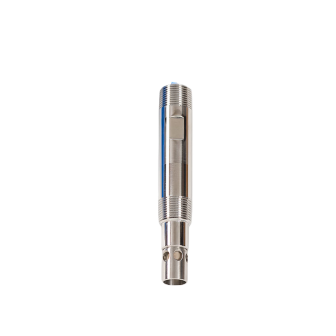

cell = 0.1 0~20 to 0~2000 μS/cm - Available in inline style(3/4" NPT process connection)

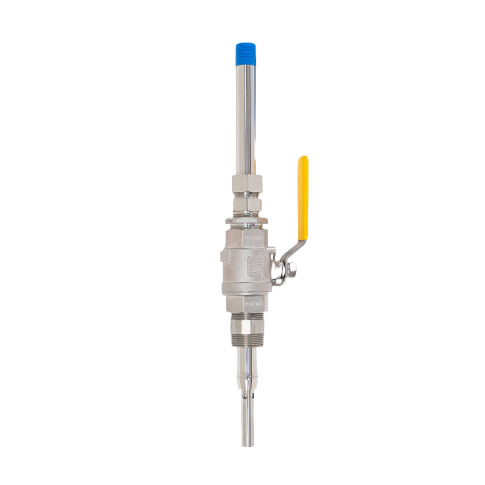

and Hot tap insertion style. - Stainless steel body construction and electrodes, PEEK insulator
- Integral PT100 Ω/ PT1000 Ω temperature compensator
- Hot tap body length available in 16" (standard) / 24" / 32" /36"
- 2-electrode Conductivity Sensor
- Available cell constants of 0.01/ 0.1
Low conductivity - Conductivity measuring range
cell = 0.01 0~2 to 0~200 μS/cm
cell = 0.1 0~20 to 0~2000 μS/cm - Available in inline style(3/4" NPT process connection)
and Hot tap insertion style. - Stainless steel body construction and electrodes, PEEK insulator
- Integral PT100 Ω/ PT1000 Ω temperature compensator
- Hot tap body length available in 16" (standard) / 24" / 32" /36"
Specifications
| LE92 2-electorde Conductivity Sensor | |
| Electrode Type | 2-electorde |
| Measuring range |
cell = 0.01 0~2 to 0~200 μS/cm cell = 0.1 0~20 to 0~2000 μS/cm |
| Body Material |
316 SS(ln-line), 316L SS(Hot tap)
|
| Electrodes material | 316SS |
| O-ring material |
Viton, FFKM(Optional)
|
| Insulator material | PEEK |
| Hot tap style body length |
16" / 24" / 32" /36"
|
| Inline style connection threads | 3/4"NPT |
| Temperature compensator |
PT100 / PT1000
|
| Operating pressure |
< 10 kg/cm2
(In-line type) ; < 5
kg/cm2
(Hot tap type)
|
| Operating temperature | < 200 ℃ (In-line type)； < 120 ℃ (Hot tap type) |
